Porites Time Series LCM

Goal: Laser capture microdissection (LCM) RNA‑seq of oral epidermis (OE) and oral gastrodermis (OG) across a heat stress time series in Porites compressa (2 time points x 2 treatments x 3 replicates × 2 tissues = 24 target LCM RNA‑seq libraries).

Current status of project: on hold until August 2026

  • Sectioning + LCM dissections for the 12 Porites samples is done.
  • RNA extraction and library prep are partially complete and currently paused due to low RNA integrity for majority of samples extracted so far and low cDNA yield compared to pilot tests
  • I will revisit extractions and library prep at a future date (August 2026)

Sectioning + LCM Protocol

Core protocols

For log of all recent (2026) troubleshooting and protocol optimization for this project, see this post: Troubleshooting Laser Capture Microdissection of Porites compressa

See older github posts for 2023-2024 LCM protocol development (e.g. here).

Exact slide prep staining protocol:

I followed a modified LCM slide prep protocol for the time series samples based on troubleshooting. I had a lot of issues getting the Porites tissue, especially the most delicate oral epidermis layer (which we really cared about for this project) to stick to the PEN membrane slides. Therefore, for these samples we decided to not use a cresyl violet stain to minimize risk of delicate tissue layers (less washing = less loss). However, we still need to remove some of the OCT embedding material from the slide.

  1. Bring slide up to room temperature, slowly to avoid formation of water condensation inside the container.
    1. 30 minutes at -20 ºC
    2. 30 minutes at 4°C
    3. 15 minutes at room temp
  2. Balance slide on rim of glass petri dish; on tube rack over dry ice (not immediately on the dry ice otherwise the 70% ethanol can freeze)
  3. Cover with ice-cold 75% ethanol to remove excess OCT, 2 minutes
  4. Replace with fresh ice-cold 75% ethanol, 2 minutes
  5. Cover with ice-cold 96% ethanol, 10 s
  6. Cover with ice-cold 100% ethanol, 10 s
  7. Rinse back of slide with 100% ethanol, 10s
  8. Then cover slide with ice-cold 100% ethanol for 1 minute to fully dry tissue and remove any excess water
  9. Air dry sample 4 mins in drying chamber with desiccant and then transport slide in falcon tube with silica packet

LCM summary for time‑series slides (June 2026)

  • Species: Porites compressa
  • Time series experiment fragments:
    • 3 hours heat: POR_R3_H1, POR_R3_H2, POR_R3_H3
    • 3 hours control: POR_R3_C1, POR_R3_C2, POR_R3_C3
    • 72 hours heat: POR_R72_H1, POR_R72_H2, POR_R72_H3
    • 72 hours control: POR_R72_C1, POR_R72_C2, POR_R72_C3
  • Target LCM dissections:
    • Oral epidermis (OE) and oral gastrodermis (OG) from each fragment (12 fragments × 2 tissues = 24 planned libraries).
    • Additional “bulk host” and “bulk sym” dissections of “chunky” bits of tissue were performed for some slides, mainly for RNA extraction testing backups

Full metadata and log are in my POR Time Series LCM spreadsheet

LCM Date Sample Tube Section Number dissections Tissue Number of Real OE/OG Sets per Sample Notes Total Dissection Area Approx Tissue Area, quick measurements – in progress Approx Tissue Area / 40 (approx # cells)
20260616 POR_R72_C3 310 5 1 oral epidermis 1 kinda abandoned these 56,998
20260616 POR_R72_C3 311 5 1 oral gastrodermis 1 kinda abandoned these 48,587
20260616 POR_R72_C3 312 6 7 oral epidermis 1   315,056
20260616 POR_R72_C3 313 6 7 oral gastrodermis 1   302,037
20260616 POR_R72_C3 314 1 7 bulk_host 1   189,141
20260616 POR_R72_C3 315 1 7 bulk_sym 1   84,036
20260616 POR_R3_C2 317 6 6 oral epidermis 1   249,919
20260616 POR_R3_C2 318 6 5 oral gastrodermis 1   109,213
20260616 POR_R3_C2 319 3 3 bulk_host 1   194,779
20260616 POR_R3_C2 320 3 3 bulk_sym 1   96,483
20260617 POR_R72_H3 321 4 7 oral epidermis 1   161,433
20260617 POR_R72_H3 322 4 6 oral gastrodermis 1   138,936
20260617 POR_R72_H3 323 4 3 bulk_host 1   175,607
20260617 POR_R72_H3 324 4 3 bulk_sym 1   58,187
20260617 POR_R3_C1 325 3 6 oral epidermis 1   355,479 57,891 1447
20260617 POR_R3_C1 326 3 6 oral gastrodermis 1   245,932 53,541 1339
20260617 POR_R3_C1 327 3 2 bulk_host 1   111,548
20260617 POR_R3_C1 328 3 1 bulk_sym 1   40,435
20260617 POR_R3_C1 329 1 1 oral epidermis 1 kinda abandoned these 41,684
20260617 POR_R3_C1 330 1 1 oral gastrodermis 1 kinda abandoned these 45,039
20260617 POR_R72_C2 331 4 7 oral epidermis 1   318,655
20260617 POR_R72_C2 332 4 7 oral gastrodermis 1   267,130
20260617 POR_R3_H2 335 3 4 oral epidermis 1   204,992
20260617 POR_R3_H2 336 3 5 oral gastrodermis 1   213,183
20260617 POR_R3_H2 337 3 3 bulk_host 1   94,479
20260617 POR_R3_H2 338 3 3 bulk_sym 1   66,965
20260618 POR_R3_C3 340 5L 4 oral epidermis 1   172,111
20260618 POR_R3_C3 341 5L 6 oral gastrodermis 1   250,054
20260618 POR_R3_C3 342 4 3 bulk_host 1 need to measure areas 0
20260618 POR_R3_C3 343 4 1 bulk_sym 1 need to measure areas 0
20260618 POR_R3_H1 345 4 3 oral epidermis 2   336,329 27,317 683
20260618 POR_R3_H1 346 4 3 oral gastrodermis 2   245,501 19,897 497
20260618 POR_R3_H1 347 1 3 oral epidermis 2   182,519 20,532 513
20260618 POR_R3_H1 348 1 4 oral gastrodermis 2   178,906 42,368 1059
20260619 POR_R3_H3 350 2 6 oral epidermis 3 slight spillage of tube 387,562
20260619 POR_R3_H3 351 2 4 oral gastrodermis 3 slight spillage of tube 102,395
20260619 POR_R3_H3 352 4 6 oral epidermis 3 slight spillage of tube 410,547 30,920 773
20260619 POR_R3_H3 353 4 5 oral gastrodermis 3 slight spillage of tube 130,068 31,320 783
20260619 POR_R72_H1 354 5 7 oral epidermis 1   413,842
20260619 POR_R72_H1 355 5 5 oral gastrodermis 1   211,616
20260619 POR_R72_H2 360 3 4 oral epidermis 1   321,680
20260619 POR_R72_H2 361 3 3 oral gastrodermis 1   168,902
20260619 POR_R72_C1 362 5 4 oral epidermis 1   397,983 43,355 1084
20260619 POR_R72_C1 363 5 4 oral gastrodermis 1   327,188 51,089 1277
20260619 POR_R3_H3 370 3 6 oral epidermis 3   485,130 51,157 1279
20260619 POR_R3_H3 371 3 4 oral gastrodermis 3   173,825 39,433 986

Extracting RNA from LCM-d Porites (on hold at this stage)

Full Extraction protocol: here

Short-hand protocol for reference

  • changes to standard: 65 uL digestion buffer instead of 60 uL to account for cel collection in 35 uL instead of 40 uL
  1. Thaw LCM-dissection tubes from -80 ºC for 5-10s at room temp.
  2. Once thawed, immediately add 65 uL of the digestion buffer and pipette up and down to mix with wide bore tip
  3. Incubate for 15 mins at RT (a few tested with 15 minis on thermomixer at 56 ºC shaking at 1400 rpm)
  4. Thaw an aliquot of DNase I from -20 ºC on ice
  5. Transfer entire volume to a 1.5 mL tube with wide-bore tip
  6. Spin at 9,000 rcf for 3.5 mins to pellet any debris, then move 95 uL of supernatant to new 1.5 mL tube.
  7. Add 190 uL RNA lysis buffer and mix well until clear
  8. Add an equal volume of 100% ethanol (285 uL) and mix well
    1. do not spin down or allow a precipitate to form
  9. Transfer entire volume into RNA (IC) column
  10. Spin column at 15,000 rcf for 30s, discard flow-through
    1. All spins, unless noted, were performed at 15,000 rcf for 30s
  11. Wash column with 400 uL wash buffer and spin down, discard flow through
  12. Prepare DNase treatment (5 uL DNase I with 35 uL DNA Digestion Buffer per sample) on ice
    1. perform DNAse treatment (40 uL) as written:
      1. apply 40 uL of the mixture directly to each filter
      2. incubate at room temperature for 15 minutes
  13. Add 400 uL prep buffer and spin down, discard flow through
  14. Add 700 uL wash buffer and spin down, discard flow through
  15. Add 400 uL wash buffer and spin for 2 minutes at 15,000 rcf
  16. Transfer column to labelled 1.5 mL tube and elute in 15 uL RNase/DNase-free water.
  17. Allow filter to saturate by spinning at 100 rcf for 1 minute and then elute by spinning down at 12,000 rcf for 1 minute.
  18. Confirm all liquid has been eluted from the filter into the tube, and discard the filter column.
  19. Immediately transfer RNA tubes to ice and perform QC (hsRNA tapestation using 2 uL RNA) as soon as possible.
    1. For each sample, pipette 1 µL High Sensitivity RNA Sample Buffer and 2 µL RNA sample in a tube strip
    2. Mix using the IKA MS3 vortexer at 2000 rpm for 1 min, then spin down
    3. On thermocycler:
      1. Heat samples and ladder at 72 °C (162 °F) for 3 min.
    4. Place samples and ladder on ice for 2 min.
    5. Spin down again and run tapestation.
  20. Store RNA at -80 ºC as quickly after the extraction as possible and limit freeze-thaw cycles.

RNA QC for Time‑Series LCM Samples (June 2026)

Extraction results so far have not been promisng, so we are pausing this project for now.

LCM Date Sample Tube Section Number dissections Tissue Number of Real OE/OG Sets per Sample Extraction Order Extraction (planned) date Digestion RNA Tapestation Concentration (pg/uL) RNA dv200 RNA Tapestation Peaks Visible cDNA concentration (ng/uL) cDNA notes Notes Total Dissection Area Total Dissection Area / 40 (approx # cells) Approx Tissue Area, quick measurements – will redo Ratio Dissection/Tissue Approx Tissue Area / 40 (approx # cells) Fate
20260618 POR_R3_H1 345 4 3 oral epidermis 2 1 6/21/26 15 min 56C 1400rpm 33.9 19.77 No 0 nothing visible   336,329 8,408 27,317 12.31 683
20260618 POR_R3_H1 346 4 3 oral gastrodermis 2 1 6/21/26 15 min 56C 1400rpm 22.6 10.37 No not prepped not prepped   245,501 6,138 19,897 12.34 497
20260619 POR_R3_H3 370 3 6 oral epidermis 3 1 6/21/26 15 min 56C 1400rpm 28.5 18.96 No not prepped not prepped   485,130 12,128 51,157 9.48 1279
20260619 POR_R3_H3 371 3 4 oral gastrodermis 3 1 6/21/26 15 min 56C 1400rpm 24.5 19.29 No not prepped not prepped   173,825 4,346 39,433 4.41 986
20260618 POR_R3_H1 347 1 3 oral epidermis 2 2 6/22/26 15 min RT 27.4 17.95 No not prepped not prepped   182,519 4,563 20,532 8.89 513
20260618 POR_R3_H1 348 1 4 oral gastrodermis 2 2 6/22/26 15 min RT 25.4 16.98 No not prepped not prepped   178,906 4,473 42,368 4.22 1059
20260619 POR_R72_C1 362 5 4 oral epidermis 1 2 6/22/26 15 min RT 20.7 16.43 No 0.465 tiny tiny peak   397,983 9,950 43,355 9.18 1084
20260619 POR_R72_C1 363 5 4 oral gastrodermis 1 2 6/22/26 15 min RT 38.7 30.2 Very small but yes 0.642 tiny tiny peak   327,188 8,180 51,089 6.40 1277

Tapestation reports:

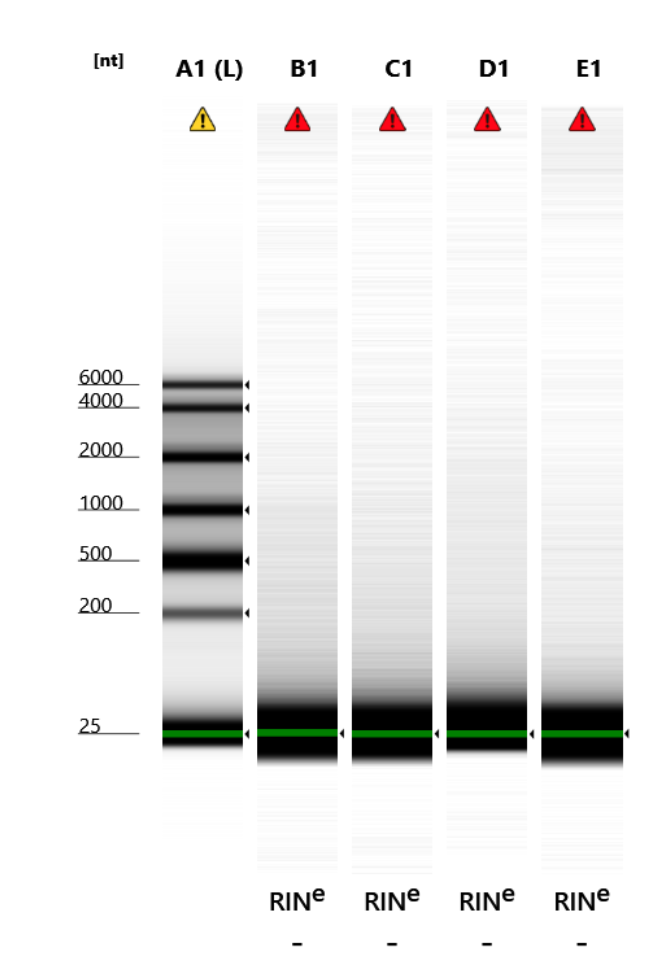

2026-05-08-AM.png 345, 346, 370, 371

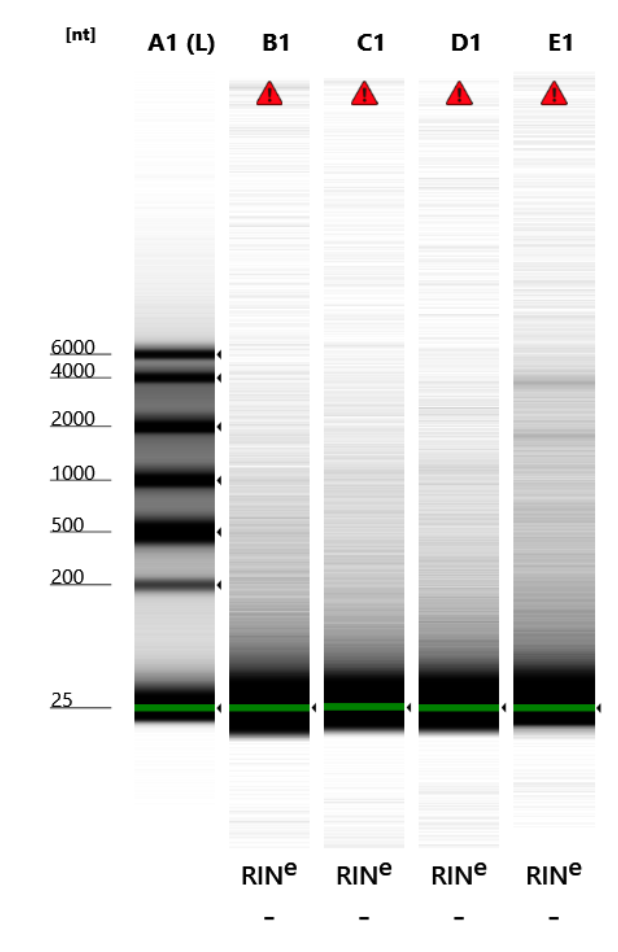

2026-05-08-AM.png 347, 348, 362, 363

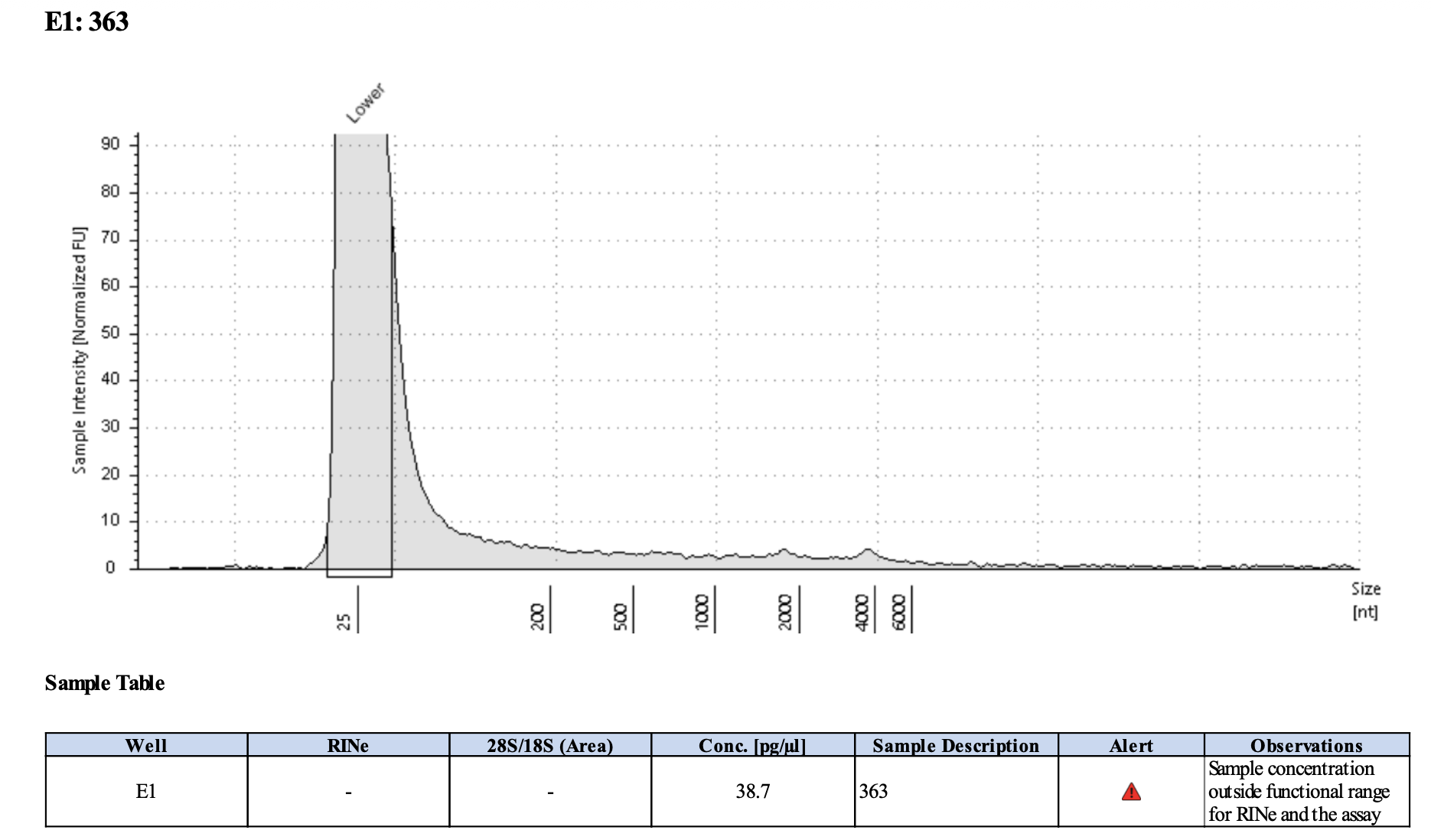

2026-05-08-PM.png 363

Observations:

  • Concentration per µL is often comparable to but slightly lower than earlier tests.
  • The limiting factor is RNA integrity:
    • dv200 ~10–30%, often no visible peaks.
    • Compare to POR_3/POR_4 extractions (in Troubleshooting post), where dv200 was >50–70 with clear peaks.
  • cDNA synthesis using the NEB low‑input kit:
    • 362 and 363: most promising RNA, extremely low cDNA yields (≤1 ng/µL), but non‑zero. Would likely be enough to continue with library prep but likely low diversity, poor-quality libraries

Comparison to Earlier Porites LCM Troubleshooting

For context, in May 2026 I optimized LCM on POR_3 and POR_4 (3/10/26 fixation), testing different digestion conditions and collection buffers. This is detailed in the separate troubleshooting post, but the key summary is:

  • PK buffer generally outperformed DNA/RNA Shield and RNA lysis buffer for LCM collection.
  • Digestion at 1 hr at 56 ºC, 1400 rpm gave the best RNA yield for LCM-d material in the tests, though validation with fresh bulk tissue later showed that extended digestion reduces dv200 so 15 minute digestion was chosen moving forward
  • For POR_3 / POR_4 LCM:
    • TS concentrations ~25–108 pg/µL
    • dv200 high enough for clear rRNA peaks
    • cDNA ~2–3 ng/µL from 26 µL reactions using 20 PCR cycles
    • Final libraries after 8 cycles looked excellent and sequenced well (biologically meaningful results, see repo)

Notes on the LCM dissections and challenges faced in this project

A few representative fields from the time‑series slides illustrate why these dissections were challenging:

  • The ethanol‑only, no‑stain protocol meant that many sections retained areas of thick OCT embedding medium surrounding the tissue
  • In many areas I had to re‑cut the same ROI multiple times to fully detach tissue from the slide.
  • Some dissections were abandoned completely because I was not able to cut them in a timely manner and had to move on.
  • This increased laser exposure and total time per slide, and probably contributed to RNA degradation (more time at room temperature before lysis + potential heating/burning of tissue from laser)

Example images:

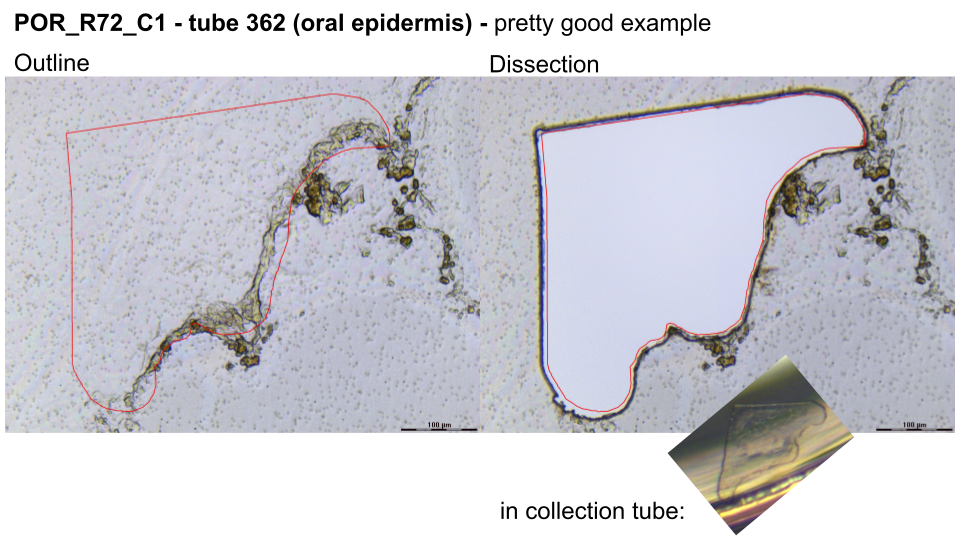

Example_1

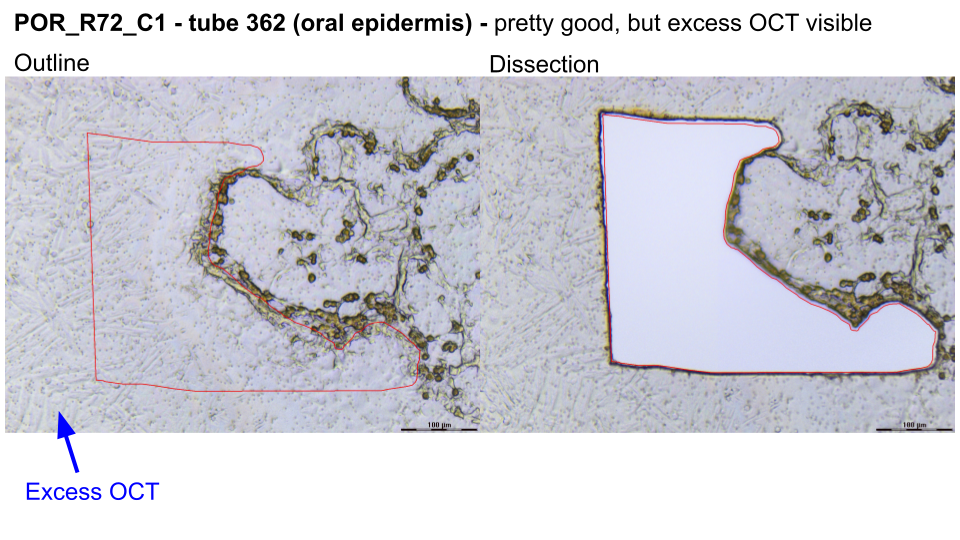

Example_2

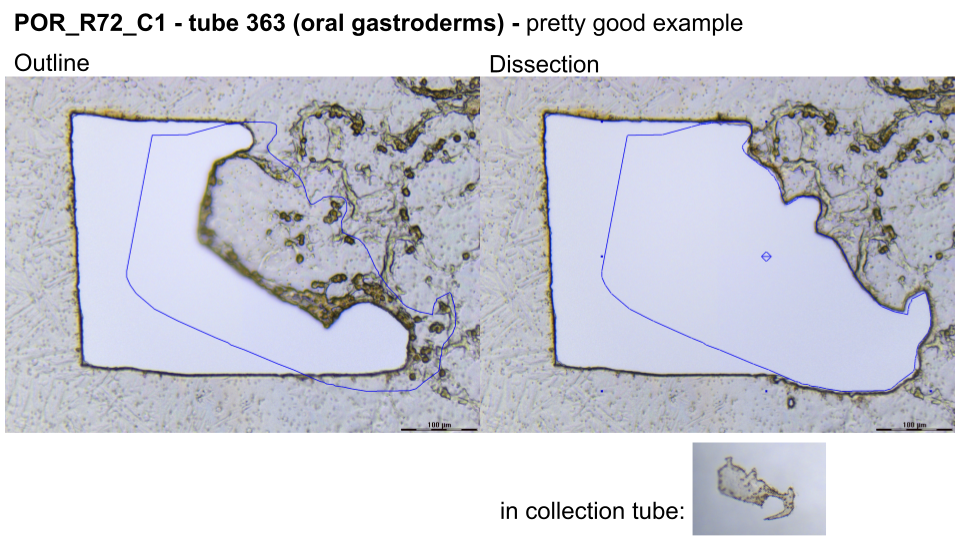

Example_3

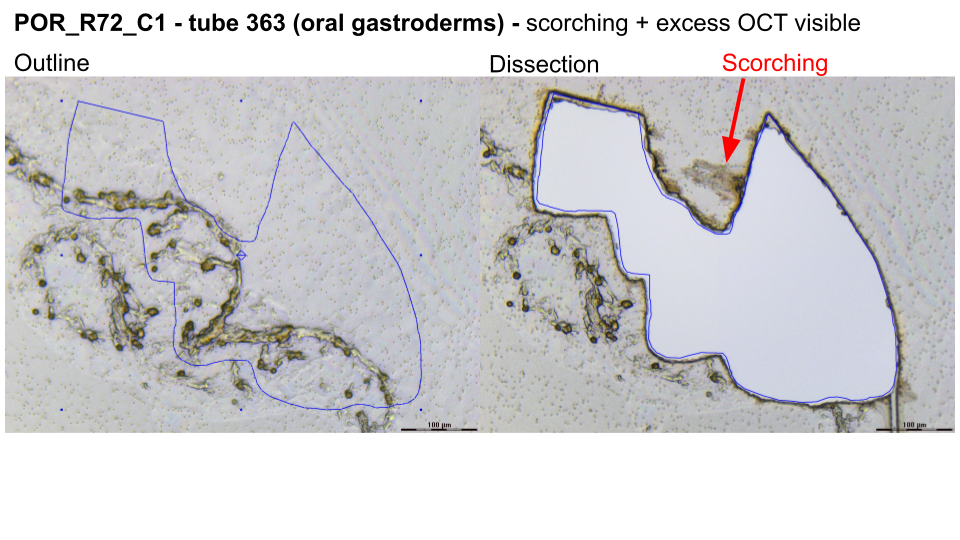

Example_4

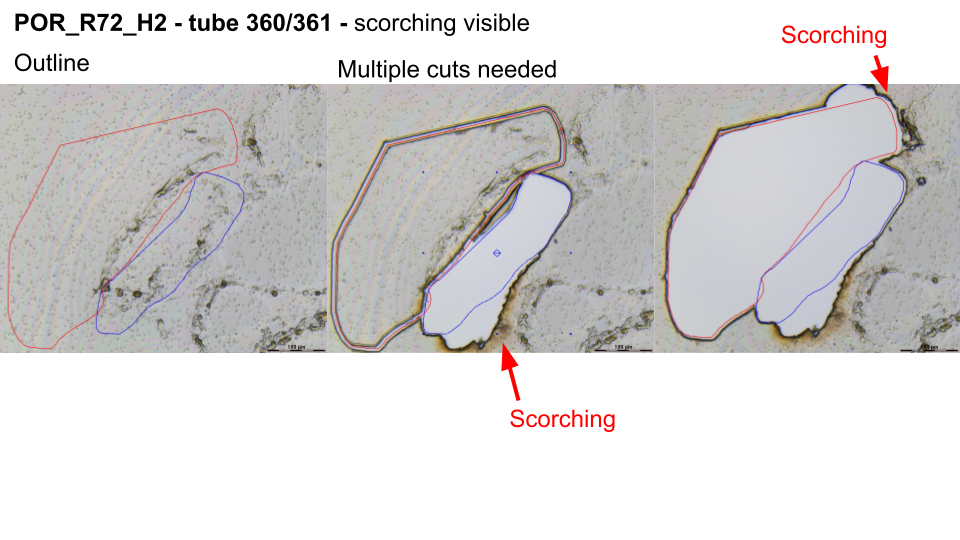

Example_5

Interpretation of Time‑Series Attempt (as of June 2026)

  • LCM of OE and OG across the 12 time‑series fragments is logistically feasible but challenging
  • Ethanol‑only, no‑stain slide prep gave cuttable tissue and reasonable dissection areas per tube, but there remained much OCT on the slides that made the LCM difficult (many dissections had to be cut over and over again), likely contributing to the severe RNA degredation
  • RNA integrity is poor in the time‑series LCM extracts:
    • dv200 typically ~10–30%; most extractions had no visible rRNA peaks.
    • By contrast, POR_3/POR_4 LCM and validation extractions had dv200 >50–70 with small but clear peaks.
    • cDNA yield is low for the small subset of RNA extracts I tested:
      • POR_R72_C1_362 (OE): 20.7 pg/µL, dv200 16.4, no peaks, cDNA 0.465 ng/µL.
      • POR_R72_C1_363 (OG): 38.7 pg/µL, dv200 30.2, tiny peaks, cDNA 0.642 ng/µL.

At this time, I am unlikely to achieve a full 24‑library LCM RNA‑seq dataset at usable quality without further optimization. A few tubes (e.g. 362, 363) could yield libraries, but the RNA is degraded and they would be sub-optimial. There’s a chance the tubes I have not yet extracted yield much better RNA, but this seems unlikely.

Preserved for Future Use

  • All remaining LCM-dissection tubes (~38) stored at -80 °C
  • Slides re-frozen at -80 °C
  • Original blocks (POR_R3*, POR_R72*) stored at -80 °C
